PAM G2

PAM G2 - 唱頭放大器

Phono Pre-AMplifier

TAKING RECORDS TO A NEW DIMENSION

不約而同的，Audionet 與 Wilson Benesch 兩家 Hi-End 名廠，都選在音樂串流元年之時，分別有重量級的類比音源新器材推出，將黑膠唱片的播放，推向最終紀元的新境界，也向所有"不離不棄"黑膠之愛樂者致敬。(Wilson Benesch 的新款唱盤研發訊息，詳 >> Mondrian Project 蒙德里安計畫。)

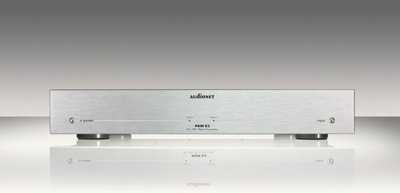

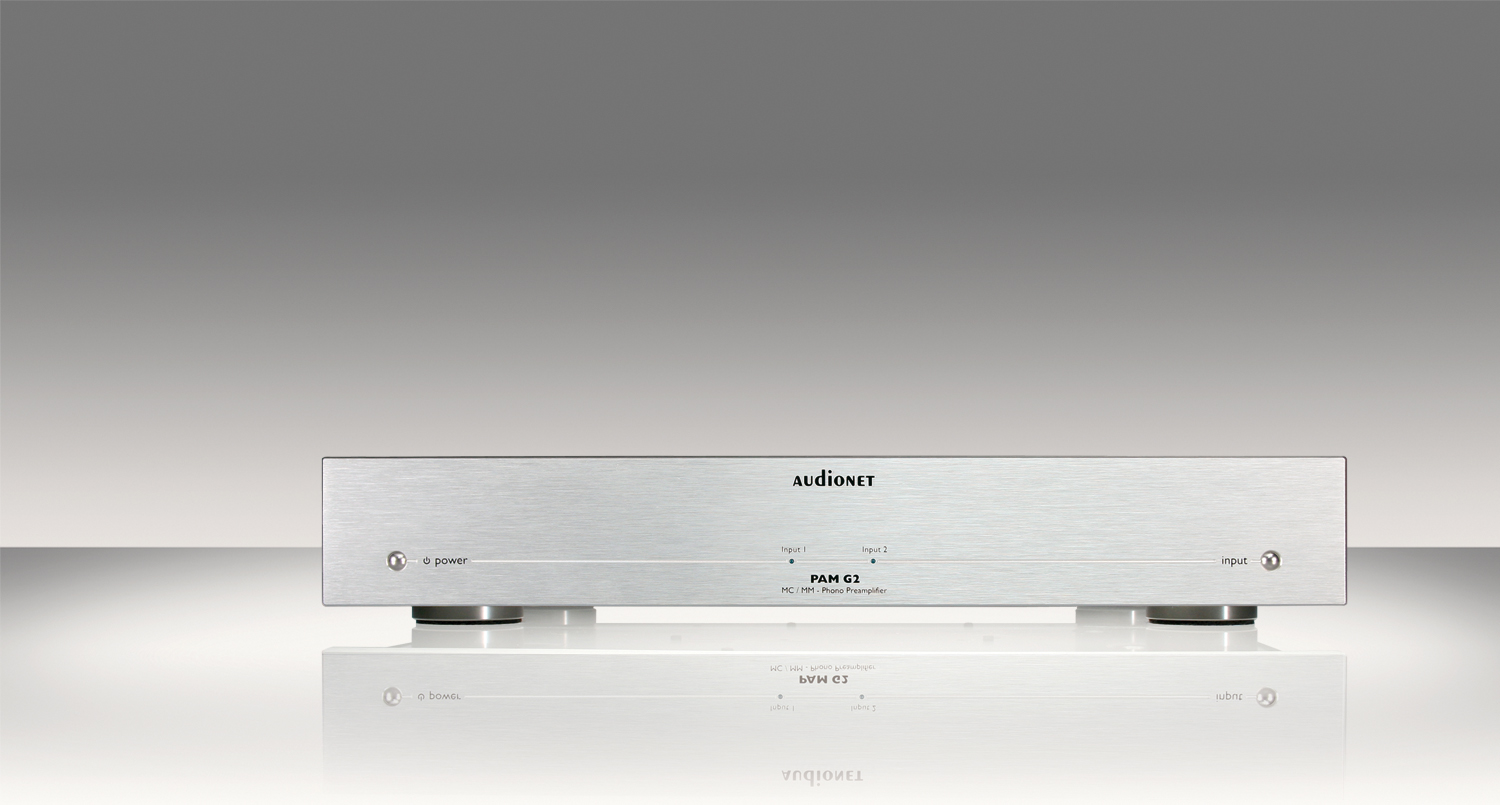

PAM G2 - universal compatible phono preamplifier

Audionet 終極唱頭放大器 PAM G2，結合高複雜設計，而有全功能之類比唱頭容抗(MM唱頭)、阻抗(MC唱頭)與階段式增益匹配。PAM G2 不僅可有兩組輸入介面，用以對應兩組唱頭、唱臂系統，更設計了全新的遠控型-外部電源供應器 EPC，在強化電源供應的同時，其遙控功能可即時調變輸入介面之容、阻抗與增益設定，可邊聽邊調，讓最佳匹配設定的過程更為容易。而兩組輸入介面，也能個別保有各自的容、阻抗與增益參數，所有的遠控方式，都特別以"純類比訊號"的方式控制，藉以免除可能的數位訊號雜音干擾。因之，PAM G2 是一部純正的類比放大器，即便有著智慧遠控的高性能特性。

PAM G2 相關款式與外部裝置的搭配 :

- PAM G2 Basic unit 1 : 配置一組輸入介面，專注一對一之盤臂系統搭配。

- PAM G2 Basic unit 2 : 配置兩組輸入介面，能個別對應兩組盤臂系統。

- PAM G2 with EPS : 另可選購專用之外部電源供應器 EPS，以得極致優異之音色表現。

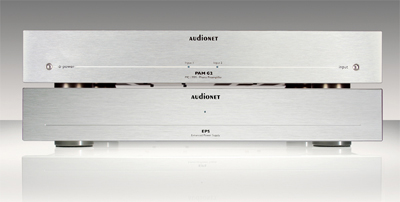

PAM G2 w/ EPS- External Power Supply

- PAM G2 with EPC : 另可選購新款遠控型-外部電源供應器 EPC，不僅能強化電源供應與音色表現，更讓 PAM G2 的調整操控更加方便。

PAM G2 w/ EPC- External Precision Controller

更多細節

編整中 ......

PAM G2
Function	Remote-controllable phono pre-amplifier for two record players / pickups with a variable input resistance and variable capacity and amplification.
Frequency response	40 - 30 kHz (+/- 0.2 dB) 18 - 80 kHz (+/- 1.0 dB)
Subsonic filter	4. order high-pass, fg = 8 Hz
Amplification	38 dB, 48 dB, 58 dB, 68 dB (at 1 kHz) selectable on the rear
Input resistance	100 Ohm, 150 Ohm, 470 Ohm, 1k Ohm, 23k Ohm, 47k Ohm, 69k Ohm selectable on the rear
Input capacitance	100 pF, 200pF, 320pF, 420pF selectable on the rear
SNR	< -103 dB @ 1 kHz (Gain = 38 dB) < -83 dB @ 1 kHz (Gain = 58 dB)
Output resistance	RCA 22 Ohm real XLR 94 Ohm real

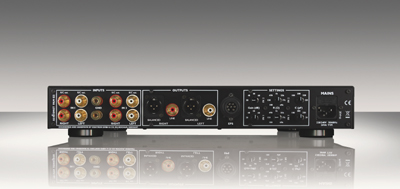

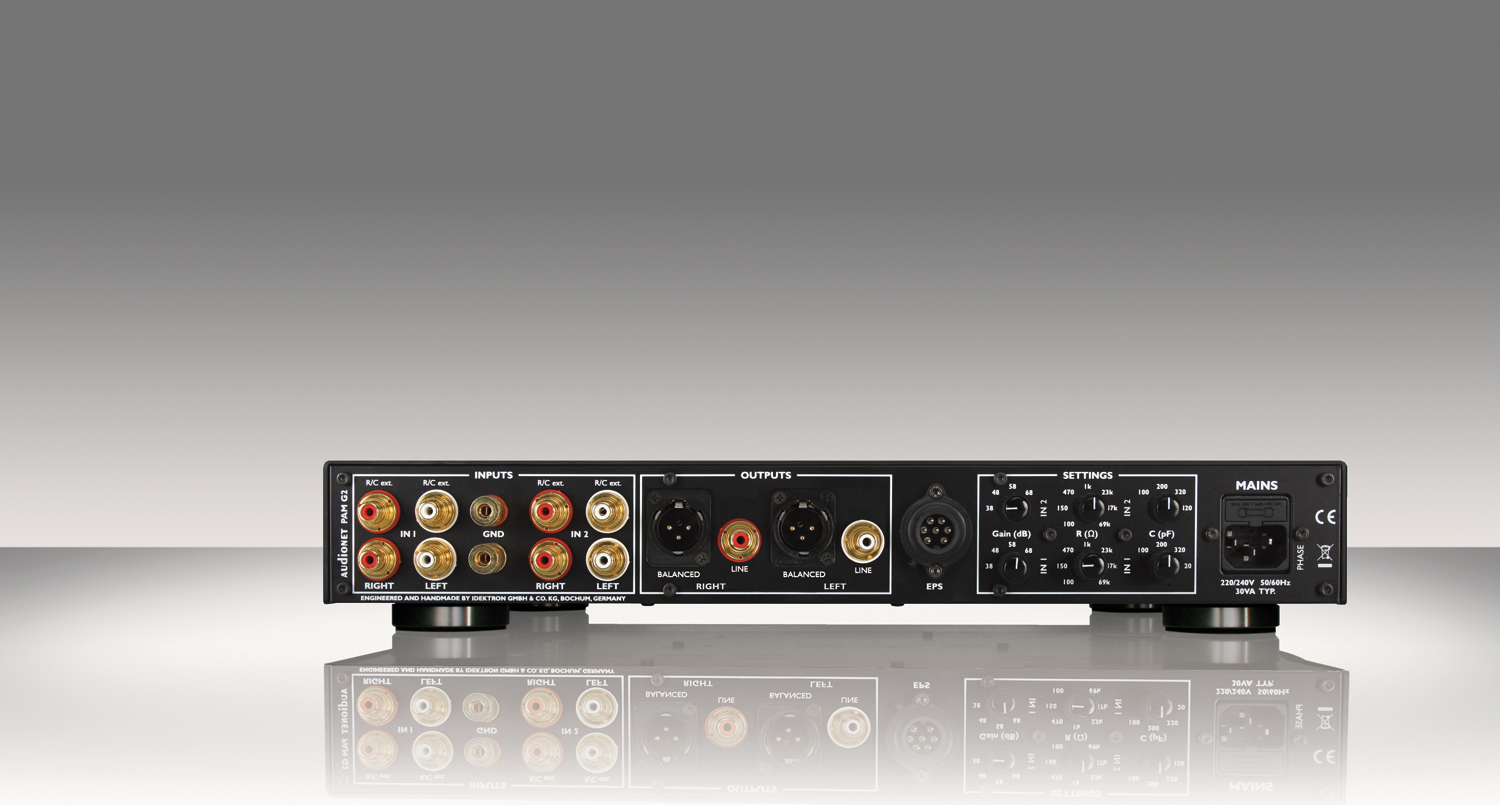

Inputs	2 pair WBT RCA, gold-plated 2 pair WBT RCA, gold-plated, for external impedance adjustment 7-pole socket for Audionet EPS or EPC
Outputs	1 pair WBT RCA line, gold-plated 1 pair Neutrik XLR symmetric, gold-plated
Mains	120 V or 230 V, 50...60 Hz
Power consumption	standby < 0.5W, max. 40 W
Dimensions	430 mm * 70 mm * 310 mm (W * H * D)
Weight	9 kg
Finish Front	aluminum, black anodized, white printing or aluminum nature, anodized, black printing
Cover Chassis	aluminum, black anodized sheet-steel, black varnished
Features	» Doppel-FET-Eingänge, kein Fehlerstrom » Connection of up to two record players / pick ups » Universal adjustment without needing to open the device » Completely remote-controllable via the external controller (precision mains adaptor) EPC » Active 2-stage RIAA equalization » No integrated operational amplifier and condenser in the signal path » 14 fast, pure and discretely realized MOS controllers for battery-similar current provision » 100 VA screened toroidal transformer, 40.000 uF sifting capacity » Class A output stage » Complete DC coupling, subsonic filter via active DC coupling » Double FET inputs, no error current
Options	external precision power supply EPS external precision controller EPC
