MAP I - 數位影音多聲道解碼前級

Multichannel Audio/Video Processor

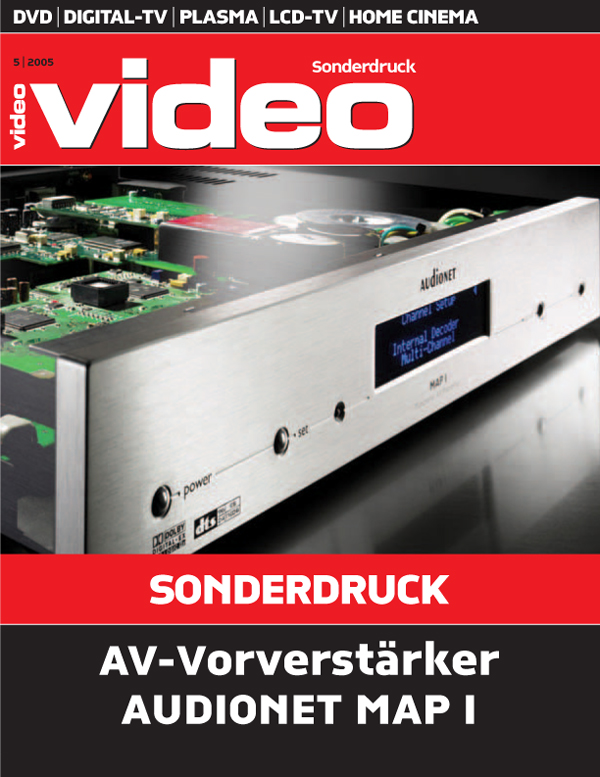

Audionet 的數位多聲道解碼前級 MAP 1，輔一上市即獲德國最權威的 A/V 專刊 - "video" 極高評價。

MAP 1 採用頂級解碼晶片，能解譯所有多聲道音效格式；在功能性上，其低音喇叭管理能力(Bass Management)更是竭盡所能，滿足各式極端之使用需求與預期，除能自動分辨訊源種類外，對於 Stereo 狀態下超低音喇叭之工作與否也能靈活設定，而操作卻極為便捷。

MAP I - the big-screen A/V experience

雖然 MAP 1 配置了更多的數位輸入檔位，但也與 MAP V2 一樣，保留有 Analogue Bypass，以展現類比經驗的優異傳承；若連接外置電源供應器 EPS，則音色密度更現非凡。在影訊介面上，MAP 1 配置了 DVI 數位影像端子，能接受 HDMI 或類比色差輸入，保有最大之彈性與廣效性。

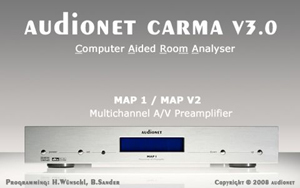

配合空間聲學分析軟體 Audionet CARMA V2 的量測與修正，MAP 1 即能啟用獨家的 MPE (Minimum Phase Equalizer) 數位等化技術，為空間聲學提供解決方案，不僅音色能平衡自然，音域音像亦更為明確。

MAP 1 率先配置電腦專用 USB 輸入端子，極具指標意義。與電腦建立連線關係，除了表示新版韌體的線上即時更新能力外，MAP 1 亦將成為電腦系統之外部解碼器 (External DAC)，成為音訊伺服中心 (Audio Server)，此時所有的 Internet 音樂資訊，都將因 MAP 1 的連結而重新定義；無怪乎德國評論員以 E=MAP1²為題，藉以影射 MAP 1 功能性與潛能之強大。

Smaller & Smarter，MAP 1 的小巧身段，說明了 Audionet 研發團隊數位系統整合能力之極致；MAP 1 的十項全能與技術落實，則宣示了 Audionet 成為嶄新世代領導者的企圖與實力。

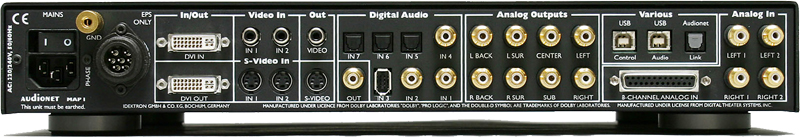

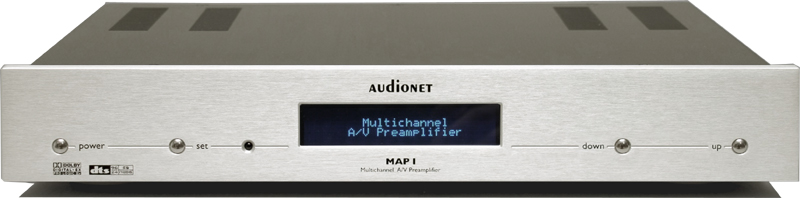

Front View	Rear Connection

MAP 1
Function	microprocessor controlled high end audio / video preamplifier Dolby Digital and DTS decoder
Audio inputs analog	- 2 pair RCA, gold-plated - 8-channel input, 25-pole SubD
Audio outputs analog	- 1 pair RCA Front L/R, gold-plated - 1 RCA Center, gold-plated - 1 RCA Subwoofer, gold-plated - 1 pair RCA Surround L/R, gold-plated - 1 pair RCA Back L/R, gold-plated
Audio inputs digital	- 3 SPDIF, RCA, gold-plated - 3 SPDIF, optical, TosLink - 1 Audionet HighBit-Link
Audio output digital	- 1 SPDIF, RCA, gold-plated, with record select-function
Video inputs	- 2 RCA Composite Video (FBAS) - 2 Hoside S-Video (interlaced) - 1 DVI digital, with installed progressive scan card also capable of analog interlaced video (YUV, RGB+C, RGB+HV, RGB with Sync. on green)
Video outputs	- 1 RCA Composite Video (FBAS) - 1 Hoside S-Video - 1 DVI digital, with installed progressive scan card also analog (progr.) output possible (YUV, RGB+C, RGB+HV or RGB with Sync. on green)
Video bandwidth	20 MHz / 10 MHz (FBAS)
Input impedance video	75 ohms
Output impedance video	75 ohms
Video standard conversion	- Conversion: Composite video to S-video (PAL and NTSC) With optional progressive scan card: - Composite video to RGB (progr.) or YUV (progr.) - S-video to RGB (progr.) or YUV (progr.) - RGB (interlaced) to RGB (progr.) or YUV (progr.) - YUV (interlaced) to RGB (progr.) or YUV (progr.) Additionally with optional DVI module: - all input signals also to DVI-D - RGB can be output as RGB+C, RGB+HV or RGB with Sync. on green
Other I/Os	- 7-pole socket for Audionet EPS (external power supply) - 1 Audionet Link - screw for earth-connection, gold-plated - 2 x USB (for future applications: 1 x USB audio, 1 x USB data)
Display	- 4 x 26 charactersvacuum-fluorescence-display - on-screen display (OSD)
Mains	110V or 230 V, 50..60 Hz
Dimensions	430 mm x 70 mm x 340 mm (W * H * D)
Weight	8 kg
Features	- pure analog volume control for all 8 channels - discrete and extremely stable output stage - intelligent sampling technology for the front channels (Front L/R) with switchable digital filters and asynchronous upsampling to 192kHz/24bit - precise clock generator for the elimination of clock flank deviations (Jitter) - Sampling frequencies and resolution of the digital inputs: 32 kHz to 192kHz/24bit - 2-channel A/D-converter for 48kHz/24bit with subsequent intelligent sampling - fully automatic 7.1-decoder (DolbyDigital, DTS) - double-precision bassmanager with 48bit-resolution - bassmanager with free adjustable crossover frequencies and filter qualities - subwoofer phase switchable - high-performance digital parametric equalizer - lip-sync adjustable from 0 to 100ms in 0.5ms-steps - DVI input and output - Y/C-separator with digital comb filter for conversion from FBAS video to S-video - USB connectors for future applications - mains phase detection - intelligent remote control SRC-7000
Options	- progressive scan card for flicker-free video output - DVI module (for digital video output) - MC/MM-phono preamplifier module - external power supply Audionet EPS

Decoder

Automatic format recognition:

- Dolby Digital 5.1
- Dolby Digital EX 6.1
- Dolby ProLogic IIx 7.1
- DTS Digital Surround 5.1
- DTS-ES Extended Surround Discrete 6.1
- DTS-ES Extended Surround Matrix 6.1
- DTS 96/24
- DTS Neo:6
- "Audionet D8" (Generation of 7.1 from 5.1 or 6.1)
- Decoding of Audionet HighBit signals: DVD audio (all formats from 48-192 kHz, stereo and multichannel) can be received and processed in digital format using all setup-functions, e.g bassmanager, equalizer, delays etc.
- A/D-conversion enables multichannel sound from two-channel sources
- Displays information of the actual format and the active channels

Bassmanager

- Management of up to 8 channels (loudspeakers)
- data processing with 48bit resolution (double precision)
- channels/channel-groups can selectively be driven with the full signal or across the digital frequency crossover with adjustable crossover frequencies and filter qualities
- X-Bass: Subwoofer can be configured as additional active bass, even for single loudspeaker groups
- Center-, Subwoofer-, Surround- and Back-Surround channels can be deactivated; signals are automatically calculated and routed to the existing speakers
- filter quality adjustable from 0,3 to 2,00 in 12 logarithmic steps
- crossover frequencies adjustable from 20 Hz to 303 Hz in 51 logarithmic steps (finer than 1/10 octave)
- Subwoofer phase switchable

Delaymanager

- Adjustment range: Distance Listening position <-> loudspeaker 0 m to 15 m (0'' to 590'') for all channels, in 5 cm- (2'')-steps
- Automatic calculation of the delays resulting from the distance settings
- Subwoofer delay offset: Phase fine-tune for best impulse response (+/- 5m)

Volume level offset

- For C, R, LS, RS, LB, RB: -18 to +12 dB in 0,5 dB-steps
- Subwoofer: -24 to +12 dB in 0,5 dB-steps
- LFE Mix: -10 to 0 dB in 1 dB-steps

Equalizer

- 5 MPEs (Minimum Phase Equalizer) for each Front L/R, Center, Sub
- 3 MPEs each for LS, RS, LB, RB

Adjustment range for each MPE:

Frequency (f): 20 Hz to 20 kH, 128 logarithmic steps
Gain: -12 dB to +6 dB, 0,5 dB-steps
Quality (Q): 0,3 to 8,0, 20 logarithmic steps

Analog inputs
Bandwidth	1 - 80.000 Hz (-3 dB)
THD + N	100 dB for 20 Hz to 20 kHz
Signal to noise ratio	112 dB @ 1kHz
Channel separation	95 dB @ 1kHz
Input impedance	100 kohms
Output impedance	33 ohms
Output voltage	max. 4.2Vrms

8-channel analog input
Bandwidth	1 - 80.000 Hz (Front)
	1 - 40.000 Hz (others)
THD + N	100 dB (Front)
	90 dB (others)
Signal to noise ratio	112dB @ 1kHz
Channel separation	Front <-> Front	95 dB (A)
	Front <-> Center	102 dB (A)
	Front <-> Surround	106 dB (A)
	Front <-> Back	106 dB (A)
	Center <-> Surround	103 dB (A)
	Center <-> Back	106 dB (A)
	Surround <-> Back	103 dB (A)

Analog input --> ADC/DAC --> Analog output
Sample frequency	48 kHz
THD + N	86 dB @ 1 kHz / 1.8 Vrms
Signal to noise ratio	95 dB @ 1 kHz / 1.8 Vrms
Input voltage	1.8 Vrms

Digital inputs
Sample frequency	32 to 192 kHz (192 kHz in HighBit-mode)
THD+N @ 1kHz, -60dBFS, 48kHz	Front	104 dB/107 dB(A)
	Center	100 dB/103 dB(A)
	Surround	101 dB/104 dB(A)
	Back	101 dB/104 dB(A)
	Sub	109 dB/115 dB(A)
