VIP G3 - CD/DVD/SACD 唱盤 Versatile Integrated Player G3
在後數位訊源時代，重播能力不再只是規格的突破，而在於傳遞感動。此時此刻，這是 VIP G3, Generation 3, 進化誕生的理由 ......
VIP G3 - statement for the senses
new silent port for heat spreading
|
|
new Higher Defined. VIP G3
Higher Defined. Video : • HDMI 720P/1080i 數位影像輸出 • Video output off 純聽音樂時, 影像迴路可關閉不用 • new 14bits/108MHz video DAC x 6 • new i.LINK connections 新增高速 i.LINK 連結端子 .......... 傳遞影像的感動
Higher Defined. Audio : • Newly Audionet OP-Amp 最新版類比放大模組 • Newly developed CLC-smoothing 全新電源抗干擾設計 • High audio-grade rhodium/copper fuse 採用高級音響專用銅銠合金保險絲 • Surround channels off, for main L/R 兩聲道播放時, 其他多聲道輸出可再單獨關閉供應電源 • Fine tuning ... statement for the senses ! 感官境界調音 .......... 傳遞聲音的感動
Higher Defined. Mechanism : • Top-Loading Mechanism 更小卻更強的片盤鎮 - "puck", 片夾的穩定度更好 .......... 傳遞操作的感動
|
|
|
|
VIP
G3
Higher Defined player
|
||
|
Function
|
Universal
playback system for CD, DVD and SACD
|
|
|
Laser
system
|
Semiconductor
laser, 650 nm and 780 nm wavelength
|
|
|
Standards
|
CD,
CD-R, CD-RW
DVD-R, DVD+R,
DVD-RW, DVD+RW
Video CD, Super VCD
DVD-Audio, DVD-Video
SACD Stereo and
Multi-channel
Dolby Digital , DTS , DTS CD, MP3
PAL/ NTSC progressive
PAL/ NTSC
interlaced
|
|
|
Converters
|
Main channels |
192 kHz/
24 bit, Multibit delta-sigma |
| Effect channels |
96 kHz/
24 bit, Multibit delta-sigma |
|
|
Sampling
rates
|
32 kHz, 44.1
kHz, 48 kHz, 88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz, 2.8224
MHz
|
|
|
Video
|
6x 14 bit video
DAC, 16x oversampling,
108 MHz
|
|
|
Audio bandwidth
|
max. 0 -
90 kHz (-3 dB)
|
|
|
THD
+ N
|
Main channels
typ.115 dB (A weighted) @ -60dBFS
typ.104
dB (A weighted) @ 0dBFS
Effect channels
typ.110
dB (A weighted) @ -60dBFS
|
|
|
SNR
|
111 dB
|
|
|
Channel
separation
|
>
130 dB @ 10kHz
|
|
|

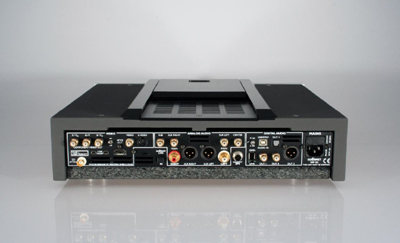

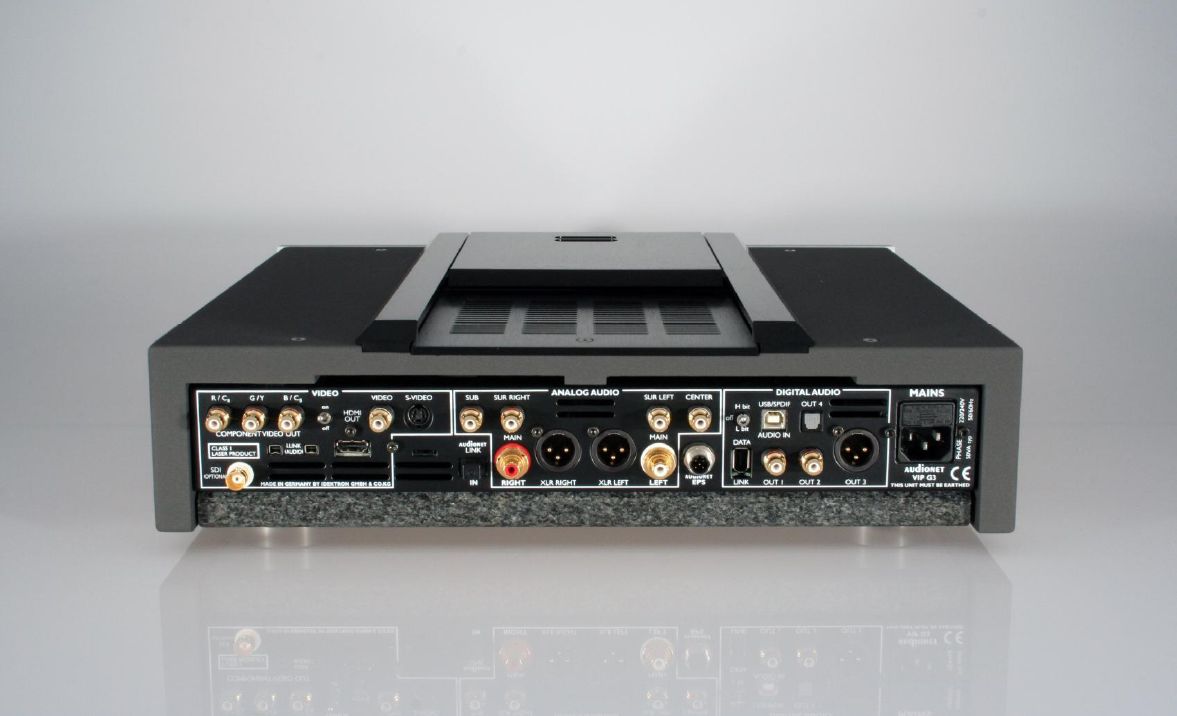

Audio outputs,
analog
|
6
Cinch line, gold-plated
2 XLR symmetric, gold-plated |
|
|
Audio outputs,
digital
|
2
Cinch, 75 ohms, gold-plated
1 AES/EBU, 110 ohms, gold-plated 1 Audionet HighBit-DataLink
1 Optical (TOS Link)
|
|
|
Audio input,
digital
|
1
USB, connected for
USB-Audio and SPDIF (as computer's external sound
card)
|
|
|
Video outputs,
analog
|
1 YUV
progressive/ RGB interlaced |
|
|
Video outputs,
digital
|
1 HDMI 1.1 (DVI with HDCP compatible) |
|
|
External power
supply
|
5 pins precision connector |
|
|
Output
impedance
analog |
33 Ohms real |
|
|
Output
voltage
analog |
3.5
Veff
|
|
|
Mains
|
120
V, 60 Hz
|
|
|
Power
dissipation
|
2
W Stand by, max. 50 W
|
|
|
Dimensions
|
430
mm * 120 mm * 360 mm (W * H * D)
|
|
|
Weight
|
18
kg
|
|
|
Finish

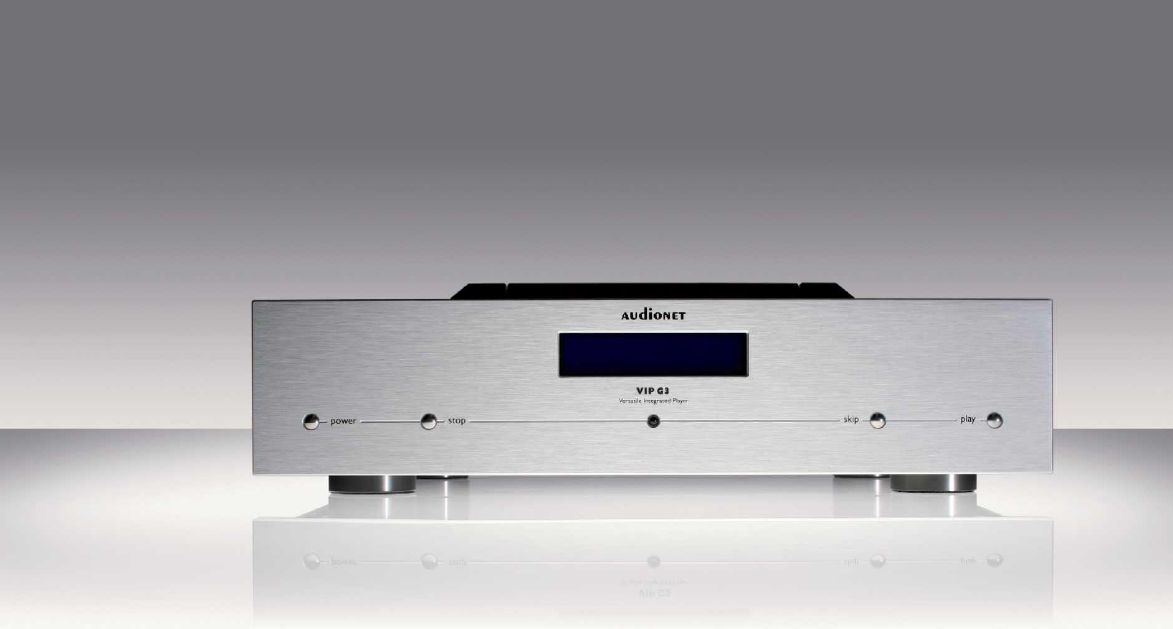

Front
|
brushed aluminum, black anodized, white printing or aluminum nature, anodized, black printing |
|
|
Cover |
MDF, Nextel coated/ granite, steel, black coating |
|
