ARIA AirDream - The Statement File Streamer
繼串流播放器 WM10 獲致極大的成功之後，高級版的播放器 ARIA AirDream，終於在大家的期盼之下孕育而生。
歷經長久的風華淬煉與技術精進，整合獨到之數位技術與純淨電源處理，Micromega 將再次証明其『數位訊源盟主』的地位與實力。
Highlights:
- 全機採用非感磁材料構成
To be as "NAS System"
Mac Mini, 不只是一部靈巧的電腦, 角色一轉變, 它又成為專注音樂資料庫管理的 super NAS.
最新的 Mac Mini 播放運用, 讓 Micromega WM10/ ARIA/ AS400 音樂串流播放器如虎添翼, 能輕易架構出創意十足、功能強大的 NAS系統, 讓串流音樂播放更簡便.
|
||||
|
Images & White paper |

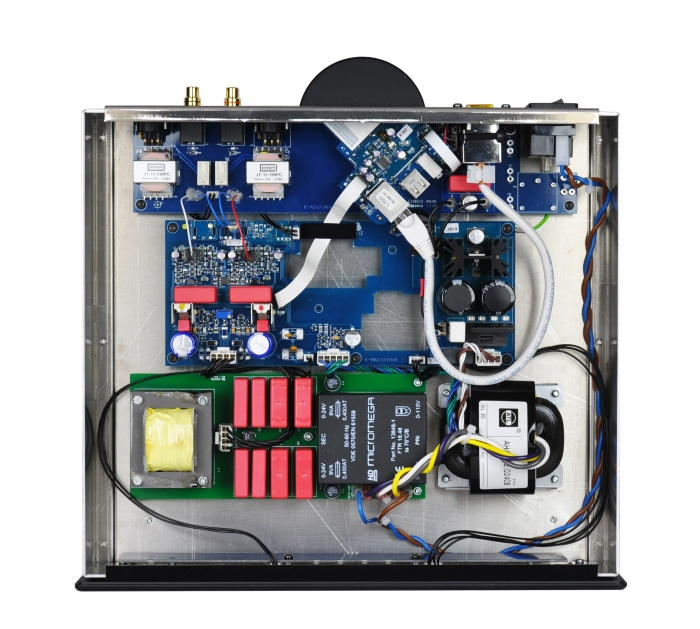

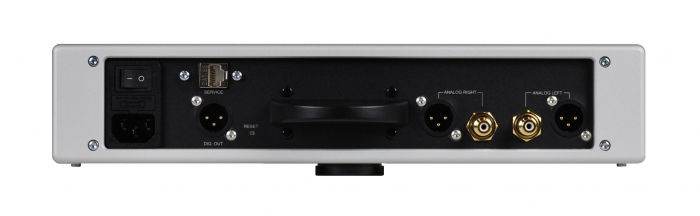

| Front View | Rear Connection | Internal View |
 |
 |
 |
| Highlights | Manual |
|
Micromega ARIA AirDream
|
||
| AirDream Characteristics | ||
| Sampling(inherent in iTunes) | 16bits/ 44.1kHz | |
| Bandwidth (±0,5dB) | 0Hz - 20kHz | |
| Linearity at -90dB | 0.1dB | |
| S/N ratio + THD | < -100dB at 1kHz | |
| Dynamic | > 110dB at 1kHz | |
| WHiFI® Characteristics | ||
| Audio file formats | AAC, AIFF, Apple Lossless, MP3, WMA, WAV | |
| Frequency bands | 2.4 or 5GHz | |
| Standard IEEE | 802.11n | |
| Audio Outputs | ||
| Stereo Cinch outputs | 1 | |
| Output level | 2V RMS | |
| Unbalanced output impedance | < 600W | |
| Stereo XLR outputs | 1 | |
| XLR output level | 2V RMS | |
| Balanced output impedance | < 600W | |
| AES/EBU digital output | 1 | |
| AES/EBU output level | 3V p-p | |
| AES/EBU output impedance | 110W | |
| Power Supply | ||
| Digital | R-Core | |
| Analogue | ACTS© | |
| Power consumption Max | 50W | |
| Dimensions | ||
| W x H x D mm | 330 x 70 x 330 mm | |
| Weight | 10 kg | |
