ARIA - Up Loading CD Player
挑戰自己,從來都是一項艱鉅的任務,尤其是挑戰自己的風格識別、成名立萬之作。歷經長久的風華淬煉與技術精進,19年後 Micromega 整合獨創之昇頻理念與純淨電源技術,發表傳承經典的 Up Loading Player - ARIA CD唱盤。
簡約洗鍊之線條,加上獨一無二的 Up Loading 透明上掀蓋機制,ARIA 展現了 Micromega 對於音響設計之哲學與內斂,同步了音響美學與生活 品味之節奏,並將音色的透明度提升至最高層次。
ARIA 的數位引擎使用 Micromega 獨門的 132kHz Upsampling 升頻技術,以 Philips VAM1202 為機心,數位類比轉換器採用 Analog Devices 現階段最頂級晶片 AD1853(192KHz/ 24Bits),並以專利註冊之 ACTS 電源技術供電。

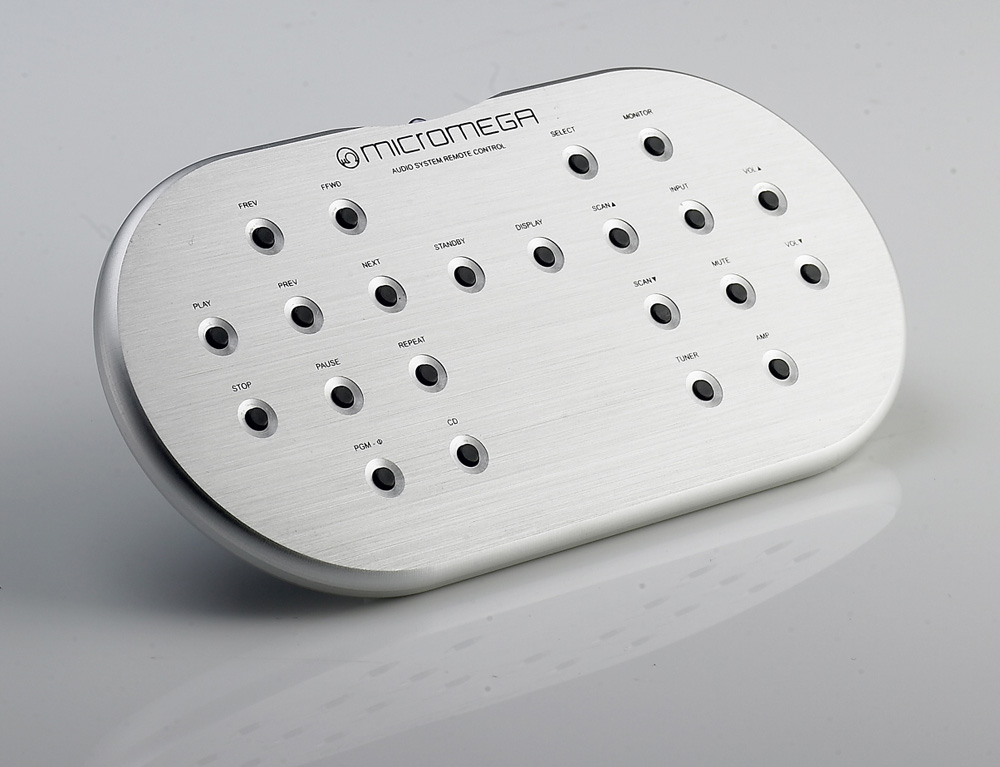

ARIA 配備 Micromega 特製之遙控器 RC1。RC1 由整塊鋁合金製成,旣超薄、又精緻,這在全球原物料與人工成本極俱惡化的今日,是不可多得之堅持。 |
Images & White paper |

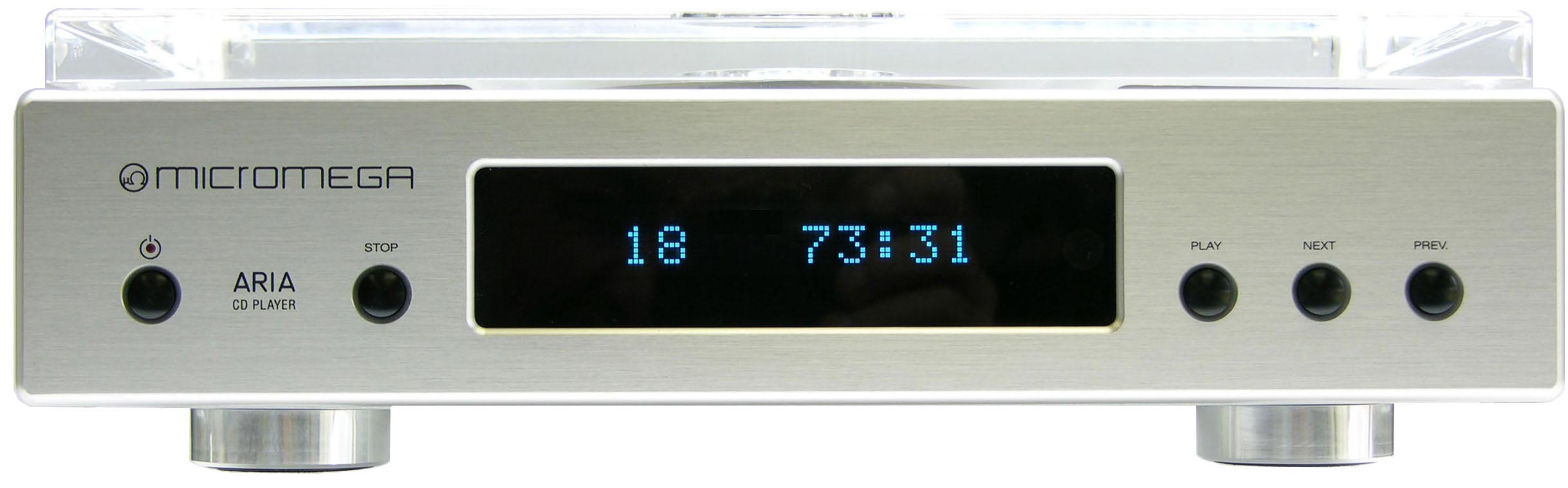

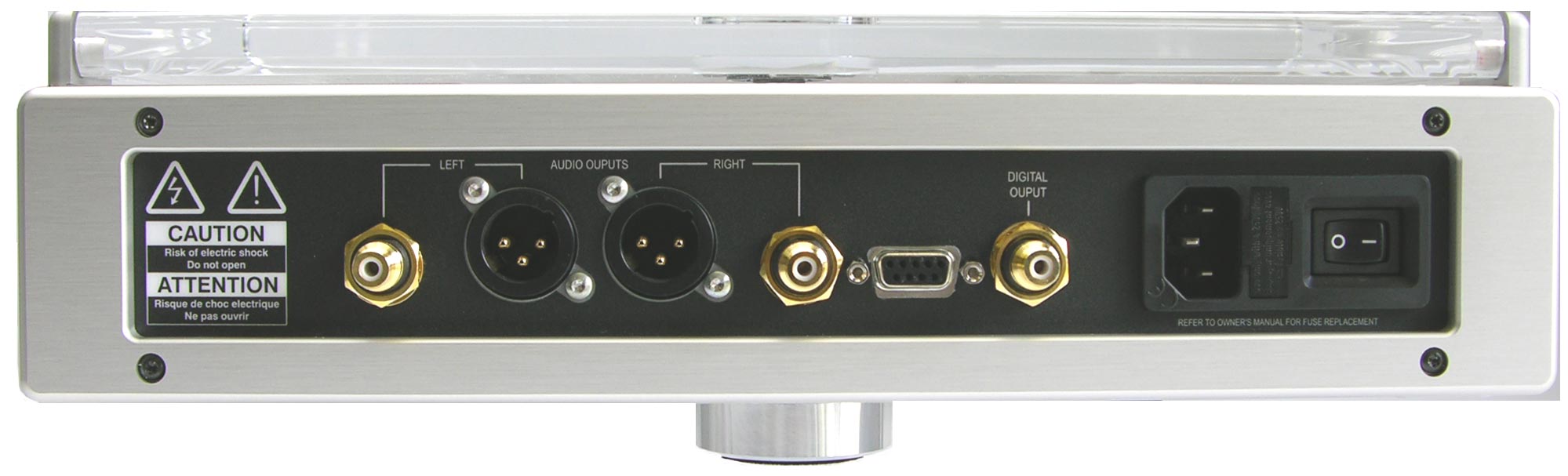

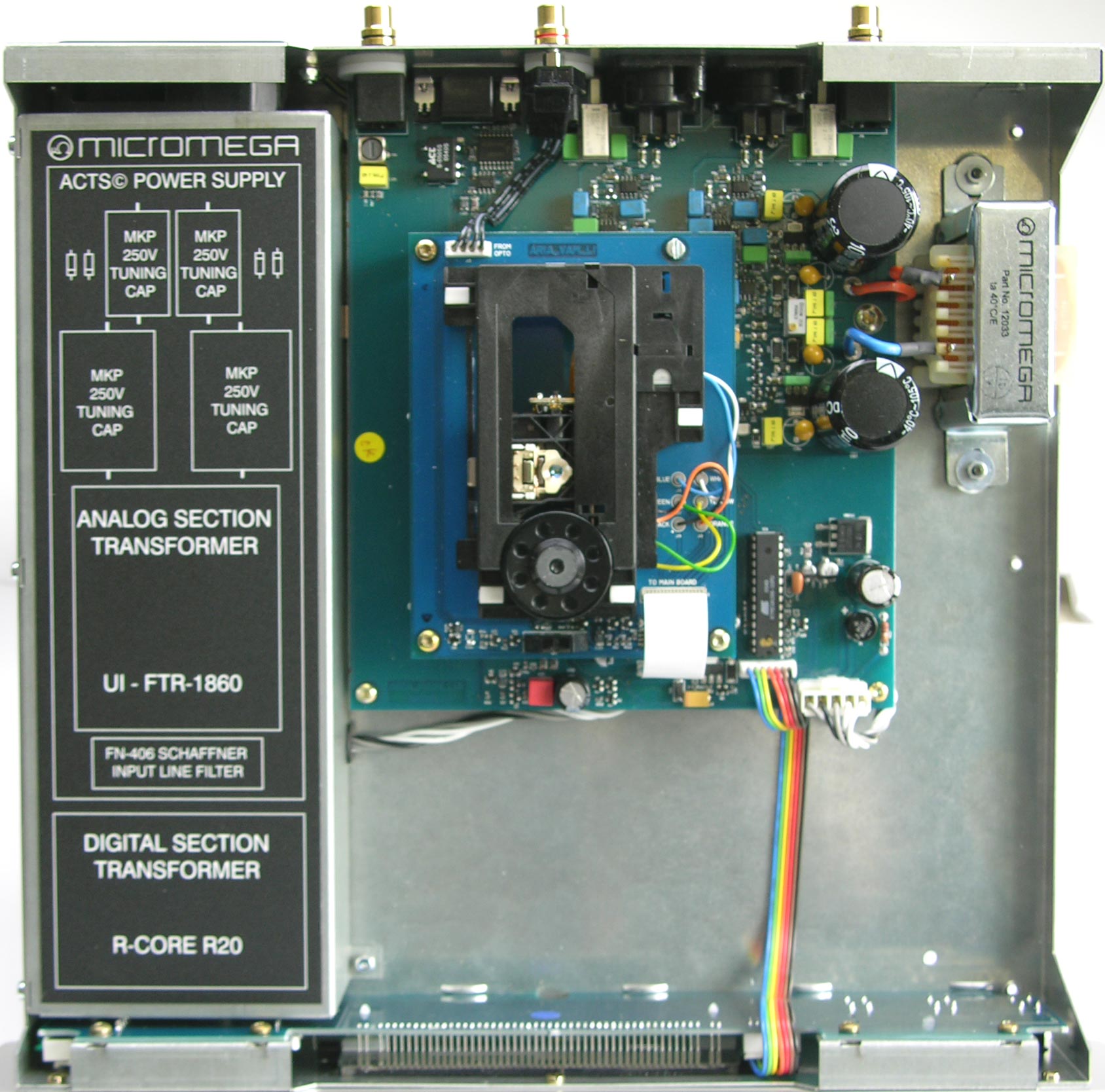

Front View | Rear Connection | Internal View |
White Paper |
Micromega ARIA
|
||
Drive mechanism | Philips VAM1202 | |
Servo IC | SAA7377 | |
Servo technology | Digital | |
SRC IC | CS8421 | |
Native sampling frequency | 44,1kHz | |
SRC sampling frequency | 132.3kHz | |
Native resolution | 16 bits | |
SRC resolution | 24 bits | |
D/A converter IC | AD1853 | |
Digital filter | Internal to AD1853 | |
Oversampling factor | 8x | |
D/A conversion type | Multibit ΣΔ | |
Bandwidth (±0,1dB) | DC-20kHz | |
Linearity at -100dB | < 0,5dB | |
S/N ratio + THD | < -100dB at 1kHz | |
Crosstalk | > 100dB at 1kHz | |
Output impedance | < 600W | |
Output level | 2V RMS / 0dB | |
Power Supply | ||
Power consumption | 20W | |
Fuse | T315mA / 130V (Slow Blow) | |
Dimensions | ||
W x H x D mm | 340 x 100 x 310 mm | |
Weight | 8.0 kg |
