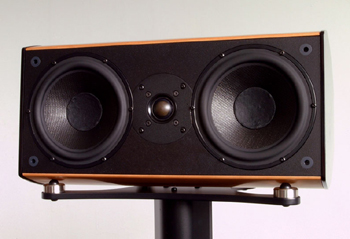

Centre - the  cinema  actor

中央聲道揚聲器

Centre 雖為同軸三單體配置，但卻是以 2.5音路分音，不只有透明清晰之中頻音色，使得影片播放對白清楚，並能向下延伸低音域至 45Hz，對劇院音效之表現與銜接，毫不費力亦不妥協。

碳纖箱體採模組式一體成型，與高剛性工程合金接合而成。由於是橫向放置，對應於弧面箱體，必須使用原廠設計之放置架或喇叭架，方能平穩擺設，播音之投射角度上下約 5度可調。

更多細節

>> Composite︰新系列的表面處理

Drive units

1 x 170mm (7in) Tactic® bass driver

1 x 170mm (7in) Tactic® bass/mid driver

1 x 25mm (1in) Soft silk dome, ultra linear WB specification tweeter

Low frequency loading

Double reflex port tuning

Frequency range

-6dB at 40Hz and 30kHz
-3dB at 43Hz and 25kHz

Frequency response

45Hz~24kHz +-2dB on axis

Sensitivity

88dB spl 2.83V/1m on axis

Impedance

6 Ohms nominal, 4 ohms minimum

Crossover

First order bass roll-off

First order mid range crossover

Second order tweeter crossover

Selected polypropylene capacitors and air cored inductors

Crossover frequencies

Bass           500Hz

Mid              5kHz

Tweeter        5kHz

Internal wiring

Multi stranded, silver plated copper, PTFE jacketed cable harnesses

Soldered connections throughout

Shortpath P.C.B. design
Links supplied for single or bi-wire applications

Input connections

Bi-wireable, in-house machined gold plated copper alloy terminals

Power handling

200W peak unclipped programme

Maximum spl

111dB at 1 meter

Dimensions

240 mm * 470 mm * 310 mm (H * W * D)

Internal volume

13 liters

Net Weight

12 kg

Finish

Standard in polymer coated alloy.

Others including wood veneers
