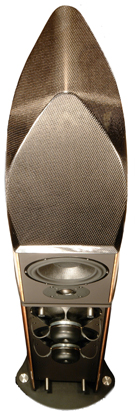

Chimera - the  flagship

旗艦揚聲器

源於旗艦喇叭 Bishop 的組織架構，併以工程金屬與碳纖聚合物組成超高剛性音箱，Wilson Benesch 成就了新世代的終極參考喇叭 - Chimera。

超高剛性箱體分為上下兩段，上段為中高音音箱，下段則為戰略矩陣 Tactic® Isobaric 之超低音箱體；中間以微距間隙分隔，一方面形成箱體之阻尼介面，消除超低音系統的傳遞干擾，另一方面則成為上段箱體、向下發聲之半自動中低音輻射器，所需的擴散介面。

上段音箱配置一只 WB 特訂之軟絲質、超線性動圈高音，-6dB 時可往上延伸至 30KHz；中音單體採用最精版的戰略單體 Tactic® Driver，新改良之 Edge Wound (長側邊音圈繞製技術) 鋁合金音圈，能增進控制，加大動態，整體性能達到極限。

下段箱體則配有兩組原創著名的水平對臥、戰略矩陣 Tactic® Isobaric，共四顆戰略單體推挽工作，超低音於 -6dB 時能有 25Hz 的深潛表現。

低音箱體以反射孔形式調諧，中高音箱則引入新的半自動輻射器設計，這都使得 Chimera 有著更易驅動的實際效率與使用，Bi-Amp 的驅動方式能得出 Chimera 最具規模與權威的極致表現。

更多細節

>> Composite︰新系列的表面處理

Drive units

4 x 170mm (7in) Tactic® Isobaric bass units
1 x 170mm (7in) Tactic® bass/mid range unit

1 x 25mm (1in) Soft silk dome, ultra linear WB specification tweeter

Low frequency loading

Double chamber, Semi active bass radiator tuning of conventional drivers

Reflex loading on Isobaric Tactic system

Frequency range

-6dB at 25Hz and 30kHz
-3dB at 34Hz and 25kHz

Frequency response

36Hz~24kHz +-2dB on axis

Sensitivity

88dB spl at 1metre on axis. 2.83V input

Impedance

4 Ohms nominal, 2.5 ohms minimum

Crossover

First order bass roll-off

First order mid range crossover

Second order tweeter crossover

Selected polypropylene capacitors and air cored inductors

Crossover frequencies

Bass           500Hz

Mid              5kHz

Tweeter        5kHz

Internal wiring

Multi stranded, silver plated copper, PTFE jacketed cable harnesses

Soldered connections throughout

Shortpath P.C.B. design on mid range and tweeter crossover

Input connections

Bi-wireable, in-house machined gold plated copper alloy terminals

Power handling

200W peak unclipped programme

Maximum spl

111dB at 1 meter

Dimensions

1500 mm * 240 mm * 550 mm (H * W * D)

Internal volume

75 liters

Net Weight

55 kg

Finish

Standard in Regal Silver or Black.

Wood Finishes- High build gloss or satin.

→ See Composite
