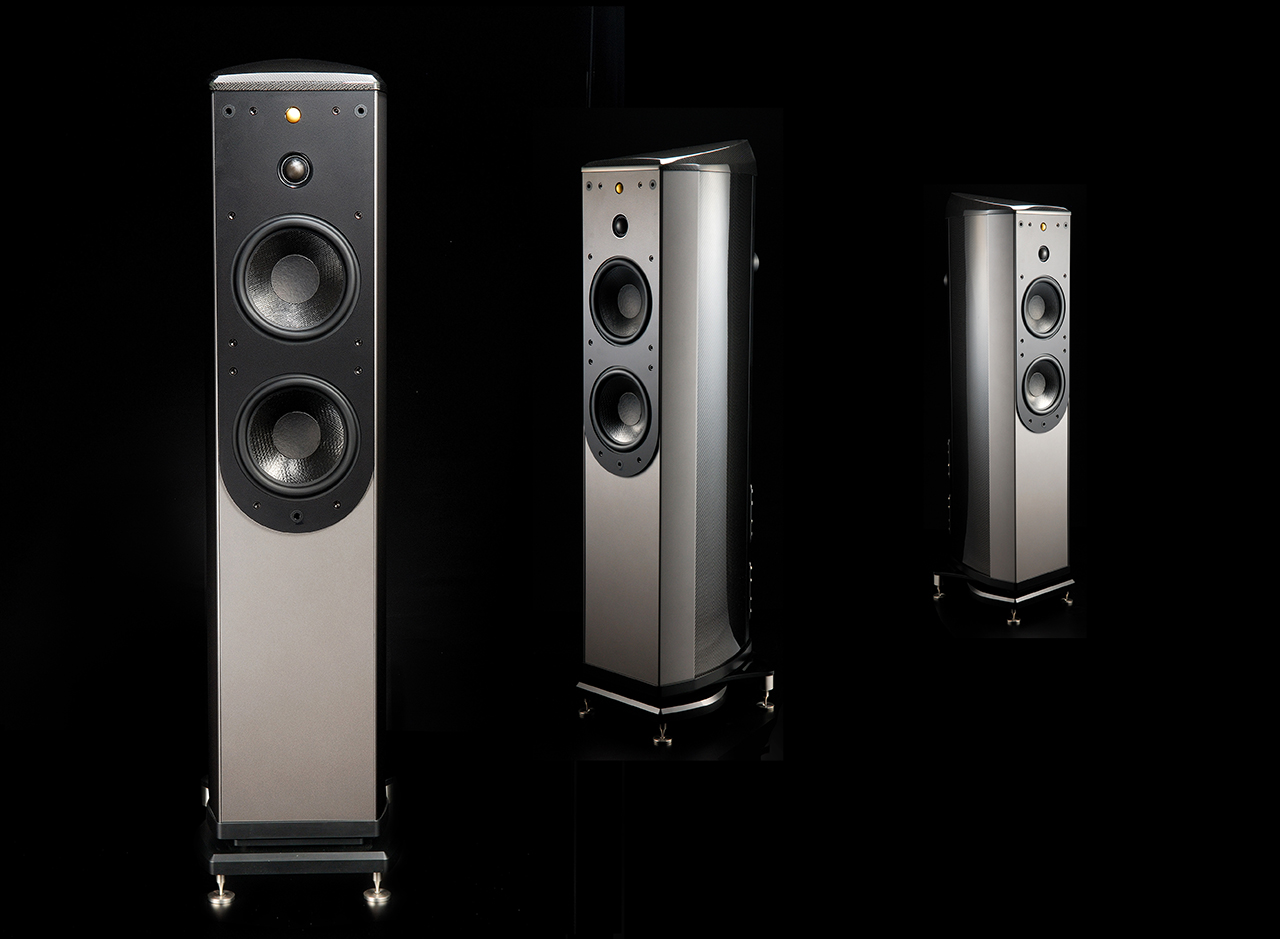

ACT C.60 - NanoTech C.60

奈米碳球 C.60 超高音頻揚聲器

期待已久的新加坡夜賽於 2008.9.28 登場。
耗資7千萬美元，這是 Formula One 有史以來的第一場夜賽，
這不僅吸引眾多 F1車迷目光，首度奪下夜賽桿位者更將創造歷史。

The night ACT C.60 was born : 誕生之夜

如同 F1首次夜賽般的令人期待，Wilson Benesch 也選在如此特別的一刻，向全世界預告新式超寬頻揚聲器的誕生 - ACT C.60。

Carbon.60 Bucky Ball

延伸說明 >> More info about Carbon.60 ...

ACT C.60 採用 Bucky Ball C.60 碳原子球，組構成最高境界、無共振 nanotube 奈米碳管箱體，這是目前僅知的碳奈米科技應用之最高境界。配置 Ultrasonic 陶瓷鍍金球體超高音，高頻精確延伸至 100kHz，創新開展聲音重播的新境界。質量配對之 WB One 新式單體組，一採全音域發聲而無分音器，一則於 500Hz一階分音，輔助低頻段延伸至 33Hz/ -3dB。若與 W.Benesch 之遠低音頻揚聲器 Torus 相結合，整體組構成為揚聲器系統的超頻寬典範，音域達到 10Hz~100kHz之驚人極限，最高音壓上看 110dB。

選擇史無前例的首次 F1夜賽開幕之時預先發表，使得 ACT C.60 的誕生別具意義與價值。靈感取自新加坡夜賽共 61圈賽程(Laps 61)，ACT C.60 推出限量版 Laps No. Limited Edition，除去 No.1 將為 W.Benesch 原廠保留外，ACT C.60 獨俱的碳纖維花紋與 NanoTech 奈米碳銀塗裝，全球僅有 60對『指定圈數號碼』限量發行。

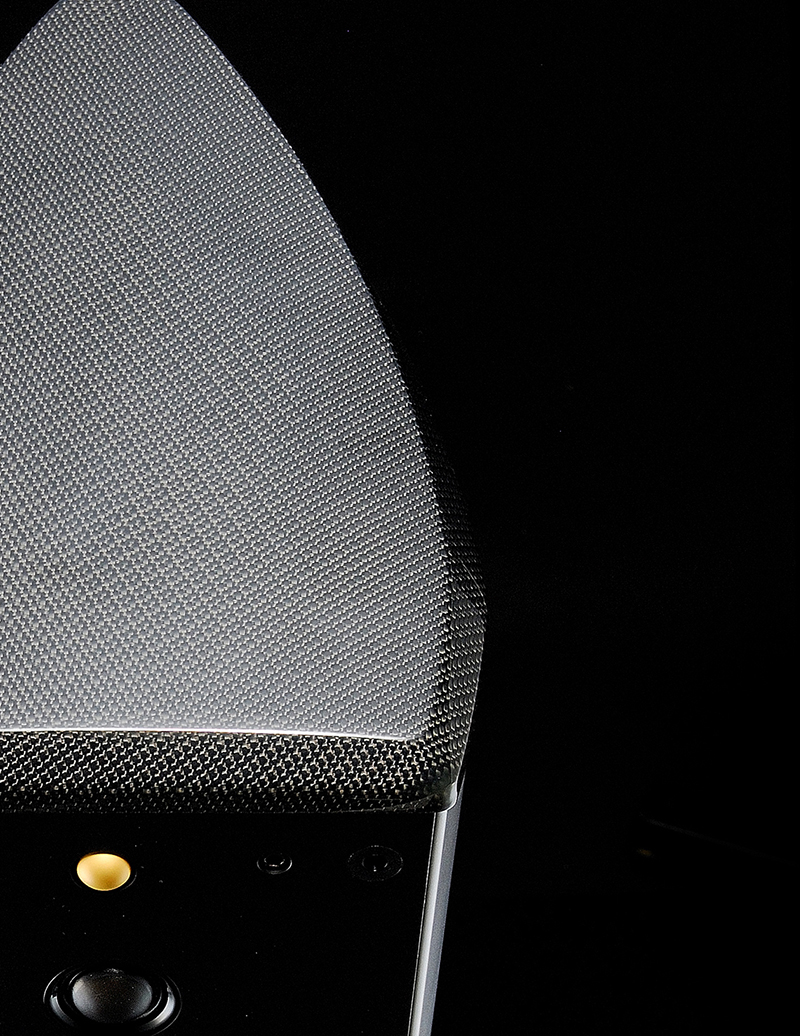

獨俱之碳纖上蓋有機花紋

陶瓷鍍金球體超高音

W.Benesch 特訂軟絲質高音

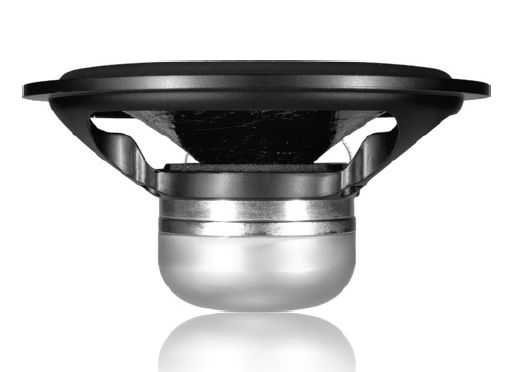

Wilson Benesch One 新式戰略單體

WB full range mid / bass

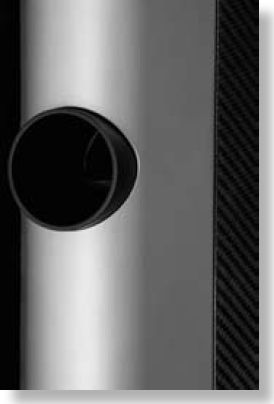

限量版之 NanoTech alloy 奈米合金塗層

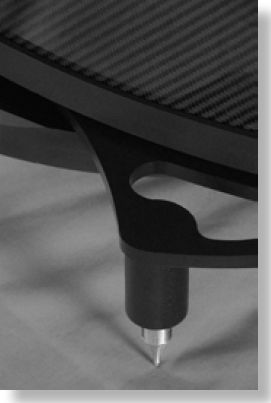

所有落地組件均由實心金屬雷射切削整成

download the C.60 Brochure >>

　

　
ACT C.60
Laps No. Limited Edition
　

Description

2.5 way + SPHERE wide bandwidth , free space, ported enclosure, floorstanding loudspeaker

Driver Units

1 x 170mm (7 in) W.B One Bass Unit

1 x 170mm (7 in) W.B One Mid/Bass Unit

[Both W.B One Units have been dynamically matched in terms of mass]

1 x 25mm (1 in) Soft dome, hand painted silk, ultra linear Wilson Benesch specification tweeter

1 x Sphere ultrasonic generator, Gold plated ceramic dome

Low Frequency Loading

Bessel alignment of fourth order reflex. Double chamber, differential tuning

Frequency response

-6dB at 30Hz and 100kHz
-3dB at 33Hz and 80kHz

Sensitivity

89dB spl at 1metre on axis. 2.83V input

Impedance

6 Ohms Nom / 4 Ohms Min.

Crossover

First order bass roll off

Directly connected mid range unit

First order tweeter roll off with user selectable inputs to adjust sensitivity by 0, 1 or 2dB

Crossover Frequency

Bass               500Hz

Mid Bass Full Range

Tweeter        5kHz

Sphere         20kHz

Internal Wiring

Multi stranded military specification silver plated copper with teflon jacket.

Platted by hand into exact lengths for each driver before being soldered point to point.

Input Connections

Each driver unit has its own rhodium plated terminals. In the case of tweeter additional terminals are provided to enable precise output levels.

Power handling

240W peak unclipped programme

Maximum spl

112dB at 1 meter

Dimensions

1090 mm * 240 mm * 370 mm (H * W * D)

Internal Volume

43.7L

Weight

52 kg

Finish
NanoTech Titanium Silver
