GM 70 - 唱頭放大器
GM 70 使用低噪音、單三極管 Telefunken PC 900（4HA5），作為唱頭輸入前前級放大；RIAA 等化網路則以被動形式呈現，並以雙三極管 6922 成增益級與緩衝輸出。
GM 70 共可切換六種不同的輸入阻抗，並設計了額外的 RCA 端子，用以外加並聯電阻，以得最佳之阻抗匹配；前前級也可切換兩種不同的增益（High/ Low），以得最廣效之唱頭選用。 |
||||
|
|
|
|

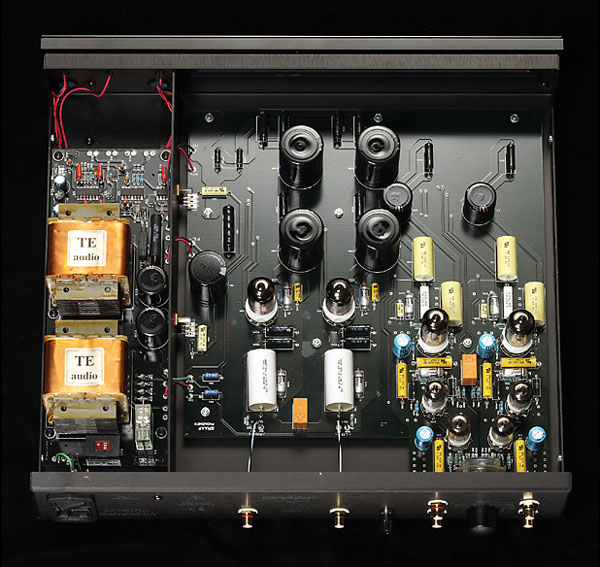

Layout within GM 70 |

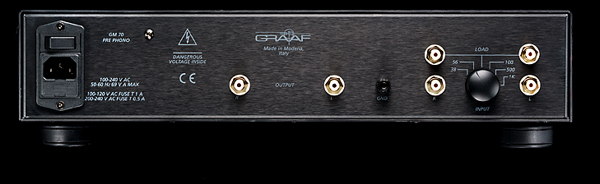

Rear Setup of GM 70 |
|
GM 70
|
|
|
Function
|
Phono Pre
Amplifier
|
|
Frequency response |
20Hz to 20KHz 50KHz attenuation: 28dB 100KHz attenuation: 34.8dB |
|
Input impedance |
adjustable on 38-56-100-500-1K Ohms 47K Ohms (Load Position) |
|
High gain |
56dB S/N ratio: 73dB (A weighted, ref. 2V output) separation: 60dB |
|
Low gain |
46dB S/N ratio: 82dB (A weighted, ref. 2V output) separation: 70dB |
|
Using tubes |
Telefunken PC900(4HA5) x 4 in input stage 6922(E88CC) x 4 in gain/ buffer stages |
|
Mains
|
120 V, 60 Hz
|
|
Power dissipation |
W |
|
Dimensions |
410 mm * 105 mm * 420 mm (W * H * D) |
|
Weight |
10Kg |
|
Finish |
Ferrari Black |
