| Multi-channel Power Amplifier | VT 5.35 • | |||
|
VT 5.35 - 多聲道 後級擴大機
|
||||
|
|
||
|

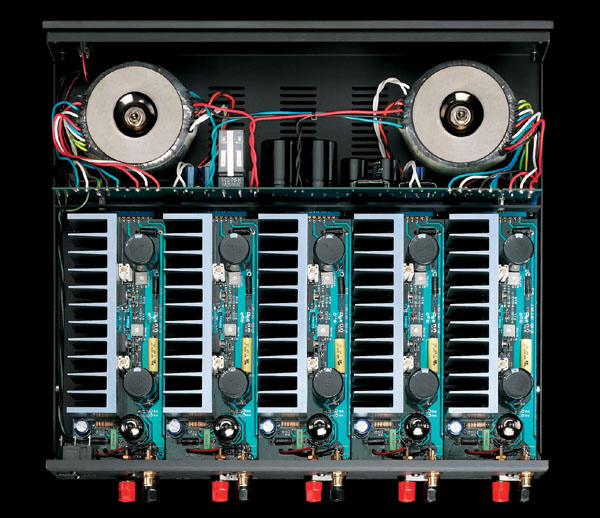

Circuit within VT 5.35 |
|
VT 5.35
|
|
|
Function
|
Multi-channel Power
Amplifier
|
|
Output power |
5 x 50W RMS |
|
Output impedance |
4~16 Ohms |
|
Input sensitivity |
900mV |
|
Input impedance |
47K Ohms |
|
Frequency response |
5Hz to 400KHz (-3dB 1W) |
|
Power bandwidth |
5Hz - 100KHz |
|
Signal/ Noise ratio |
90dB A |
|
Total harmonic distortion |
0.1% at 1W |
|
Negative feedback |
6dB |
|
Damping factor |
50 |
|
Using tubes |
6922 x 1 for each input stage MOSFET output stage |
|
Mains
|
120 V, 60 Hz
|
|
Power dissipation |
80 W |
|
Dimensions |
410 mm * 105 mm * 380 mm (W * H * D) |
|
Weight |
15 Kg |
|
Finish |
Ferrari Black |
